MITSUBISHI ELECTRIC / MELFA CR

Compact robots.
Flexible machine integration.

MELFA CR combines compact construction, core performance and ease of use. Articulated and SCARA robots address different handling and assembly needs.

Explore robot families ↓View Chinese product catalog ↗
RV-CRRH-CRHRV-CR · RH-CRH

TWO FAMILIES / MELFA CR

Choose the robot for the task

Tool orientation, payload, reach and installation environment determine the robot and controller configuration.

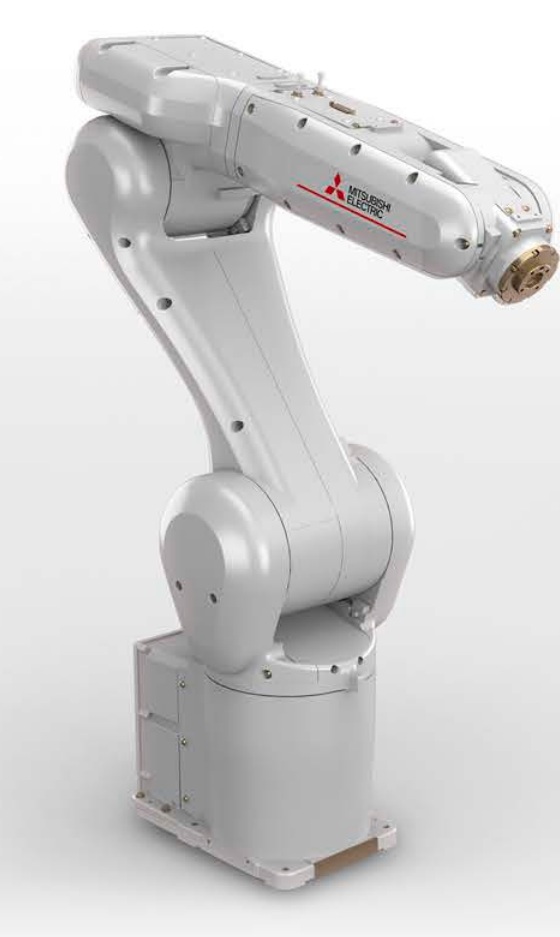

01Six-axis articulated robots

RV-CR

MELFA RV-CR

RV-8CRL / RV-12CRL feature slender bodies for cells requiring flexible tool orientation.

  • Maximum payload: 8 / 12 kg

    Reach: 931 mm or 1504 mm. Check gripper mass, allowable torque and inertia.

  • IP65 protection and compact structure

    The catalog specifies IP65 protection. The slender structure reduces interference when integrating the robot into a cell.

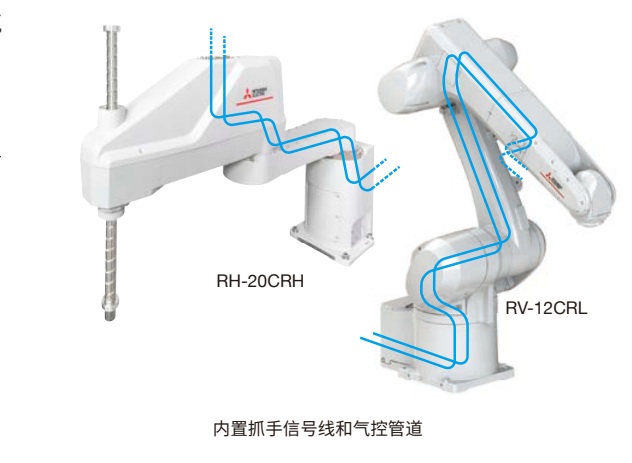

  • Wiring and maintenance

    Internal gripper wiring and air lines simplify integration. HK motors remove the encoder backup battery requirement. Belt-driven axes still require model-specific maintenance.

View Chinese product catalog ↗

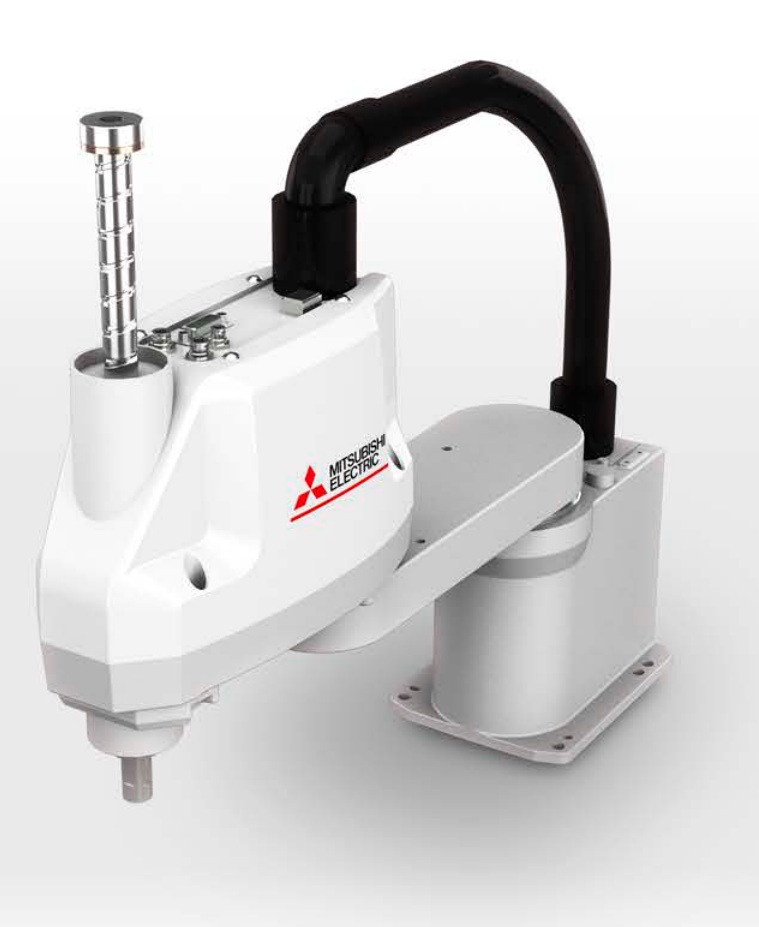

02Four-axis SCARA robots

RH-CRH

MELFA RH-CRH

RH-3 / 6 / 10 / 20CRH cover different payload and reach requirements for planar handling and assembly.

  • Maximum payload range: 3–20 kg

    Maximum payloads of 3, 6, 10 or 20 kg. Reach spans 400–1000 mm and Z stroke spans 180–420 mm, depending on the model.

  • Low-profile construction

    Compact arm covers reduce overall height. The lightweight structure supports integration; standard protection is IP20.

  • Tool connections

    Internal tool wiring and pneumatic lines support grippers. Confirm pin count, pipe size, stroke and installation clearances for the selected model.

View Chinese product catalog ↗

MODEL OVERVIEW

Six models at a glance

ModelMaximum payloadReachZ strokeProtection
RV-8CRL8 kg931 mm—IP65
RV-12CRL12 kg1504 mm—IP65
RH-3CRH3 kg400 mm180 mmIP20
RH-6CRH6 kg600 / 700 mm200 mmIP20
RH-10CRH10 kg600 / 700 / 800 mm200 / 300 mmIP20
RH-20CRH20 kg850 / 1000 mm420 mmIP20
Payload includes tooling

Confirm the total gripper and workpiece mass together with torque, inertia and posture limits. Reach and Z stroke correspond to specific model variants. Check body protection specifications.

CONTROL / ENGINEERING / CONNECTIVITY

From robot to integrated automation cell

CR80099.5 mm

CR800

Low-profile controller

CR800 is 99.5 mm high and can be installed horizontally or vertically. Select the controller for the robot model. It supports MELFA-BASIC V / VI, external I/O and device communication.

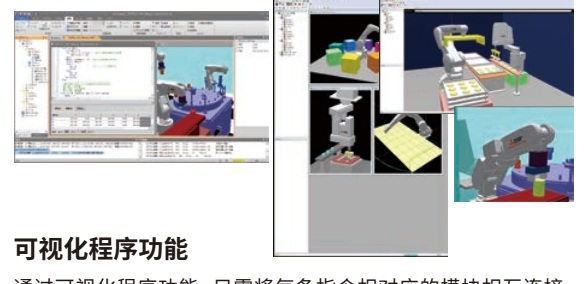

Engineering from design to maintenance

RT ToolBox3

Engineering from design to maintenance

Program editing, debugging, simulation, 3D viewing and monitoring support commissioning. Visual programming connects instruction modules to create robot programs.

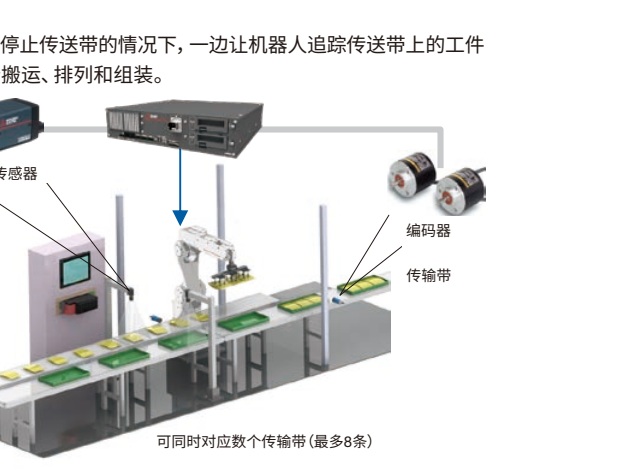

Conveyor tracking and additional axes

TRACKING

Conveyor tracking and additional axes

Tracking supports handling, arranging and assembly on moving conveyors. The catalog describes up to eight additional axes; confirm drive hardware and coordination for the system.

Integration with factory equipment

GOT / NETWORK

Integration with factory equipment

GOT can share robot status, errors and maintenance data. Optional network cards support CC-Link IE Field, EtherCAT, EtherNet/IP and PROFINET. Confirm model compatibility for vision, force sensing and MELFA Smart Plus.

Feature applicability

The catalog states that RV-12CRL does not support MELFA Smart Plus; applicable RV-8CRL support requires CR800-D Ver.A5p or later. Confirm network, vision, force sensing and safety features against model and option documentation.

TALK TO SYSLINK

Turn the task into a robot configuration

Prepare workpiece and gripper mass, cycle requirements, workspace, installation clearances and communication needs.
